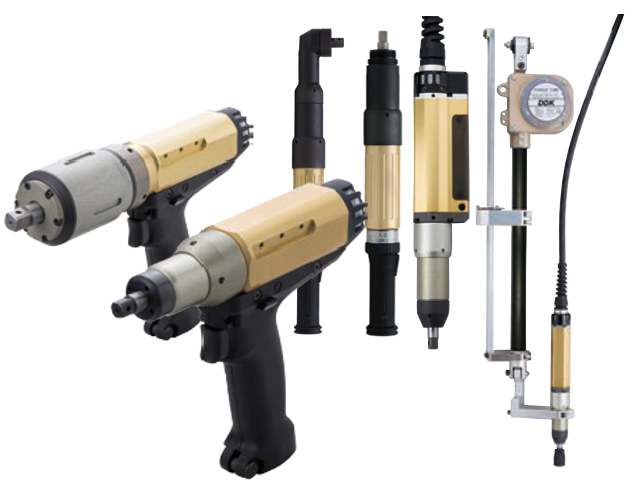

HFC-3000lⅡ HAND TOOL SYSTEM
HAND TOOL
HFC-3000Ⅱ HAND NUTRUNNER
HAND TOOL SYSTEM CONTINUES TO EVOLVE
KEY SPECIFICATIONS
| TORQUE ACCURACY |
FULL SCALE TORQUE 1/2–FULL SCALE TORQUE Range : 3σ/X[%] within 5% FULL SCALE TORQUE 1/4–FULL SCALE TORQUE Range : 3σ/X[%] within 6% |
| MINIMUM ANGLE DISPLAY RESOLUTION | 0.1° |
| TORQUE TRANSDUCER ACCURACY / LINEARITY | ±1% / ±0.5% |
| OPERATIONAL FACTORS (VARIABLES) | Supports control of up to 64 programs (parameters). Programs are stored in EPROM, eliminating the need for battery replacement. |
| FASTENING METHOD |
Basic Control Modes : Torque Control (Torque Method) or Angle Control (Angle Method) Supports monitoring and evaluation of torque, angle, 3-stage rate control, time, speed, and total rotation count. |
FEATURES
Equipped with a compact high-performance servo motor, this flexible-type hand tool system was developed as a manual nutrunner capable of delivering high-quality fastening performance.
1. FASTENING CONTROL
- Advanced fastening control through torque and angle methods
- Operator error prevention through rate, angle, time, and rotation count monitoring
- Built-in gyro sensor detects tool movement for enhanced operational safety
- Reduced fastening reaction force through motor pulse control
- Sequence control function supported
2. CONTROLLER INFORMATION
- Number of fastening parameters increased from 32 to 64
- Fastening and graph data can be stored via CF card (optional)
- Direct communication with USER CONSOLE (PC software) without a converter, using LAN cable connection
- Supports PLC connectivity through various fieldbus protocols including CC-LINK, DeviceNet, and ProfiBus (optional)
3. TOOL
- Motor Section : Permanent magnet motor adopted for improved vibration resistance, oil resistance, and compact design
- Preamp Section : Integrated high-precision torque signal amplification and transmission module with built-in Tool-ID functionality
4. QUALITY MANAGEMENT
- Detects workpiece abnormalities through torque, angle, torque rate, and time monitoring functions
- Equipped with warning lamp and buzzer alerts in case of fastening abnormalities
- Error codes are displayed separately for tool and controller issues, enabling efficient troubleshooting
HFT TOOLS
Straight Type
| Model | Max. Torque [N.m] | Torque Range [N.m] | Max. Speed [rpm] | Length [mm] | Weight [kg] | Output Drive Size [mm] |
|---|---|---|---|---|---|---|
| HFT-010M50-S1-20 | 10 | 2.5~10 | 1,800 | 331 | 1.3 | 9.5 (3/8) |
| HFT-015M80-S1-20 | 15 | 3.75~15 | 1,600 | 351 | 1.4 | 9.5 (3/8) |
| HFT-025M80-S1-20 | 25 | 6.25~25 | 1,000 | 351 | 1.43 | 9.5 (3/8) |
| HFT-040M80-S-20 | 40 | 10~40 | 694 | 351 | 1.43 | 9.5 (3/8) |
| HFT-055M120-S-20 | 55 | 13.75~55 | 861 | 404.5 | 2.4 | 12.7 (1/2) |
| HFT-090M120-S-20 | 90 | 22.5~90 | 488 | 417.5 | 2.7 | 12.7 (1/2) |
| HFT-130M120-S-20 | 130 | 32.5~130 | 318 | 417.5 | 2.7 | 12.7 (1/2) |
Pistol Type
| Model | Max. Torque [N.m] | Torque Range [N.m] | Max. Speed [rpm] | Length [mm] | Weight [kg] | Output Drive Size [mm] |
|---|---|---|---|---|---|---|
| HFT-015M50-P1 | 15 | 3.8~15 | 1,190 | 218 | 1.1 | 9.5 (3/8) |
| HFT-030M120-P1 | 30 | 7.5~30 | 1,540 | 260 | 1.8 | 9.5 (3/8) |
| HFT-035M80-P1 | 35 | 8.8~35 | 778 | 242 | 1.37 | 9.5 (3/8) |
| HFT-035M80-P1-X | 35 | 8.8~35 | 778 | 242 | 1.37 | 9.5 (3/8) |
| HFT-050M120-P1 | 50 | 12.5~50 | 869 | 260 | 1.8 | 9.5 (3/8) |
| HFT-060M80-P1-X | 60 | 15~60 | 461 | 275 | 2.5 | 12.7 (1/2) |
| HFT-080M120-P1 | 80 | 20~80 | 570 | 266 | 1.9 | 12.7 (1/2) |
| HFT-200M120-P1 | 200 | 50~200 | 216 | 317 | 3.3 | 19.0 (3/4) |
Angle Type
| Model | Max. Torque [N.m] | Torque Range [N.m] | Max. Speed [rpm] | Length [mm] | Weight [kg] | Output Drive Size [mm] |
|---|---|---|---|---|---|---|
| HFT-015M50-A1-20 | 15 | 3.8~15 | 1,215 | 369 | 1.6 | 9.5 (3/8) |
| HFT-025M80-A1-20 | 25 | 6.3~25 | 1,070 | 389 | 1.7 | 9.5 (3/8) |
| HFT-040M80-A1-20 | 40 | 10~40 | 648 | 414 | 1.93 | 9.5 (3/8) |
| HFT-060M80-A-20 | 60 | 15~60 | 446 | 414 | 1.95 | 12.7 (1/2) |
| HFT-080M120-A-20 | 80 | 20~80 | 557 | 459.8 | 3 | 12.7 (1/2) |
| HFT-130M120-A-20 | 130 | 32.5~130 | 316 | 484.8 | 3.3 | 12.7 (1/2) |
| HFT-200M120-A-20 | 200 | 50~200 | 206 | 512.3 | 3.7 | 15.9 (5/8) |
| HFT-300M120-A-20 | 300 | 75~300 | 144 | 586 | 6.2 | 19.0 (3/4) |
