PRODUCT
Product Overview
NUTRUNNER
AFC-3000 NUTRUNNER SYSTEM
NUTRUNNER APPLICATION

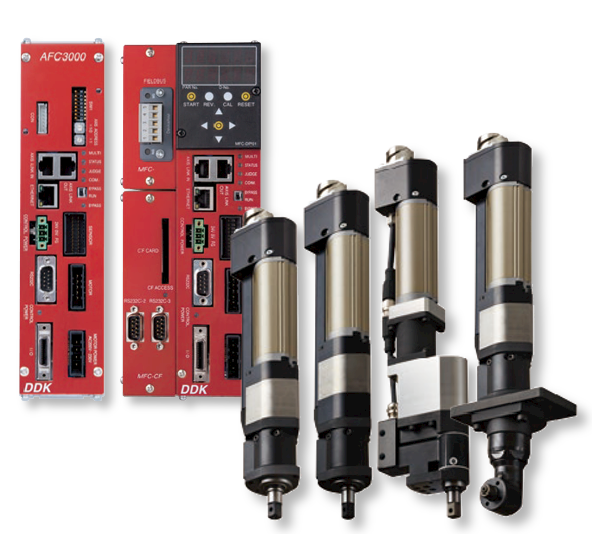

AFC-3000 NUTRUNNER SYSTEM
Fastening Evolution For an Ever-Changing Assembly World
An AC Servo Nutrunner designed for fastening process equipment applications and integration into robotic systems.
In addition to torque and angle fastening control, it features rotational torque measurement and re-tightening inspection capabilities, enabling reliable use not only for screw fastening but also across a wide range of industrial processes.
Key Specifications
| TORQUE Accuracy | FULL SCALE TORQUE (x1/2~1) Range : 3σ/X(-)[%] within 3% FULL SCALE TORQUE (x1/4~1/2) Range : 3σ/X(-)[%] within 4% TORQUE Resolution = 1/3000 F.S (3× higher precision compared to the AFC-1500) |
| Minimum Angle Display Resolution | 0.1° |
| Angle Resolution | 4096 pulses/rev |
| TORQUE TRANSDUCER ACCURACY | ±1% (FULL SCALE TORQUE) |
| TORQUE TRANSDUCER LINEARITY | ±0.5% |
| OPERATIONAL FACTORS (VARIABLES) | Supports control of up to 32 programs (parameters).
Programs are stored in EPROM, eliminating the need for battery replacement. |
| FASTENING METHOD | Basic Control Modes: Torque Control (Torque Method) or Angle Control (Angle Method) Supports monitoring and evaluation of torque, angle, 3-stage rate control, time, speed, and total rotation count. |
AFC-3000 SYSTEM ADVANTAGE
Compact tool size combined with enhanced speed and torque accuracy.
Equipped with standard Ethernet connectivity for communication with user console (PC software) and servers.
- High-speed inter-axis communication based on proprietary communication architecture
- Equipped with the latest-generation CPU for faster internal processing (control and communication)
- High-speed transmission of quality data and waveform data Sequence control supported
- SEQUENCE 제어 가능
- Supports communication speeds up to 100 Mbps
- Integrated Multi-Unit and PLC functionality
- Stores up to 10,000 result history records and 100 waveform history records
- nternal memory capacity : Quality Data = 12,000 records / Waveform Data = 100 records / Error History = 500 records
- Supports independent emergency stop signal input even when external STOP signals are connected via Fieldbus
SELF-DIAGNOSTIC FUNCTION
Upon power-up, the tool automatically performs its built-in verification system to inspect the following items.
- Verifies that the connected tool and controller are properly matched and configured.
- Verifies that the electrical performance of the torque transducer meets the required operating specifications.
- Verifies that the torque measurement circuit is operating normally.
- Performs an automatic calibration check before every fastening operation to monitor the condition of the torque transducer,
helping prevent abnormal bolt/nut fastening, unit or cable issues, and potential tool damage in advance.
MFT & CFT TOOLS
Straight Type
| Model | Max. Torque [N.m] | Max. Speed [rpm] | Weight [kg] | Overall Length [mm] | Square Drive [mm] | Min Pitch [mm] | Applicable controller |
|---|---|---|---|---|---|---|---|
| CFT-051RS1-S/SL | 5 | 1330 | 1.16 | 270 | 9.5 | 41 | MFC-S024 |
| CFT-101RS1-S/SL (-H) | 10 | 3000 | 1.26 | 275 | 9.5 | 39 | MFC-S024 |
| CFT-201RS1-S/SL (-H) | 20 | 1293 | 1.42 | 290 | 9.5 | 39 | MFC-S024 |
| CFT-281RS1-S/SL (-H) | 28 | 992 | 1.42 | 293 | 9.5 | 39 | MFC-S024 |
| CFT-401RS1-S/SL (-H) | 40 | 712 | 1.42 | 293 | 9.5 | 39 | MFC-S024 |
| CFT-801RS3-S/SL (-H) | 80 | 1015 | 3.4 | 372 | 12.7 | 50 | MFC-S060 |
| CFT-132RS3-S1/S1L (-H) | 130 | 574 | 3.4 | 372 | 12.7 | 50 | MFC-S060 |
| CFT-202RS3-S/SL (-H) | 200 | 387 | 4.3 | 390 | 15.9 | 59 | MFC-S060 |
| CFT-302RS3-S/SL (-H) | 300 | 260 | 5.8 | 440 | 19 | 71 | MFC-S060 |
| CFT-502RM4J-S | 500 | 238 | 13.5 | 500 | 25.4 | 89 | MFC-S120 |
| CFT-802RM4J-S | 800 | 150 | 15 | 566 | 25.4 | 96 | MFC-S120 |
| CFT-113RM4J-S | 1100 | 120 | 22 | 618 | 38.1 | 99 | MFC-S120 |
| CFT-153RM4J-S | 1500 | 88 | 28.5 | 633 | 38.1 | 115 | MFC-S120 |
Offset Type
| Model | Max. Torque [N.m] | Max. Speed [rpm] | Weight [kg] | Overall Length [mm] | Square Drive [mm] | Min Pitch [mm] | Applicable controller |
|---|---|---|---|---|---|---|---|
| CFT-201RS1-O/OL | 20 | 1,221 | 2 | 362 | 9.5 | 25 | MFC-S024 |
| CFT-401RS1-O/OL | 40 | 712 | 2.4 | 368 | 9.5 | 29 | MFC-S024 |
| CFT-801RS3-O/OL | 80 | 1,015 | 6 | 458 | 12.7 | 35 | MFC-S060 |
| CFT-132RS3-O1/O1L | 130 | 574 | 7.5 | 484 | 15.9 | 39 | MFC-S060 |
| CFT-202RS3-O/OL | 200 | 387 | 8.2 | 474 | 15.9 | 45 | MFC-S060 |
| CFT-302RS3-O/OL | 300 | 260 | 13 | 583 | 19 | 55 | MFC-S060 |
| CFT-502RM4J-O | 500 | 238 | 23.5 | 692 | 25.4 | 62 | MFC-S120 |
| CFT-802RM4J-O | 800 | 150 | 31 | 788 | 25.4 | 71 | MFC-S120 |
Angle Head (Straight tool sold separately)
| Model | Max. Torque [N.m] | Max. Speed [rpm] | Weight [kg] | Overall Length [mm] | Square Drive [mm] | Min Pitch [mm] | Applicable Tool |
|---|---|---|---|---|---|---|---|
| RA025-CFT | 25 | 1941 (101) | 1 | 104 | 9.5 | 29 | CFT-101/201RS1-S |
| RA040-CFT | 40 | 836 (201) | 1.3 | 135 | 9.5 | 37 | CFT-201/281RS1-S |
| RA060-CFT | 60 | 460 (401) | 1.3 | 135 | 12.7 | 37 | CFT-401RS1-S |
| RA080-120-CFT | 80 | 656 (801) | 2 | 157 | 12.7 | 42 | CFT-801RS3-S |
| RA130-120-CFT | 130 | 656 (801) | 2.3 | 169 | 12.7 | 46 | CFT-801RS3-S |
| RA200-120-CFT | 200 | 371 (132) | 2.7 | 196.5 | 15.9 | 56 | CFT-132RS3-S1 |
| RA300-120-CFT | 300 | 250 (202) | 5 | 248 | 19 | 67 | CFT-202RS3-S |
NFT TOOLS
Straight Type
| Model | Max. Torque [N.m] | Max. Speed [rpm] | Weight [kg] | Overall Length [mm] | Square Drive [mm] | Min Pitch [mm] | Applicable Controller |
|---|---|---|---|---|---|---|---|
| NFT-101RM1-S1 | 10 | 500 | 2.1 | 311 | 9.5 | 41 | MFC-S024 |
| NFT-201RM1-S | 20 | 500 | 2.1 | 311 | 9.5 | 41 | MFC-S024 |
| NFT-301RM2A-S | 30 | 600 | 2.1 | 367 | 9.5 | 41 | MFC-S024 |
| NFT-401RM1-S | 40 | 250 | 2.1 | 311 | 9.5 | 41 | MFC-S024 |
| NFT-801RM3-S | 80 | 500 | 4.5 | 408 | 12.7 | 61 | MFC-S060 |
| NFT-132RM3-S | 130 | 395 | 5.5 | 417 | 15.8 | 61 | MFC-S060 |
| NFT-202RM3-S | 200 | 220 | 6 | 438 | 15.8 | 63 | MFC-S060 |
| NFT-302RM3-S | 300 | 150 | 9 | 456 | 19 | 77 | MFC-S060 |
| NFT-303RM5-S | 3000 | 39 | 70 | 946 | 44.5 | 172 | MFC-S120 |
| NFT-503RM5-S | 5000 | 22 | 90 | 930 | 50.8 | 207 | MFC-S120 |
Offset Type
| Model | Max. Torque [N.m] | Max. Speed [rpm] | Weight [kg] | Overall Length [mm] | Square Drive [mm] | Min Pitch [mm] | Applicable Controller |
|---|---|---|---|---|---|---|---|
| NFT-201RM1-O | 20 | 500 | 2.7 | 388 | 9.5 | 25 | MFC-S024 |
| NFT-301RM2A-O | 30 | 600 | 3 | 466 | 9.5 | 29 | MFC-S024 |
| NFT-401RM1-O | 40 | 250 | 3 | 410 | 9.5 | 29 | MFC-S024 |
| NFT-801RM3-O | 80 | 500 | 6.8 | 497 | 12.7 | 35 | MFC-S060 |
| NFT-132RM3-O | 130 | 395 | 8 | 537 | 15.8 | 39 | MFC-S060 |
| NFT-202RM3-O | 200 | 220 | 9.5 | 573 | 15.8 | 45 | MFC-S060 |
| NFT-302RM3-O | 300 | 150 | 13.5 | 606 | 19 | 55 | MFC-S060 |
Angle Type
| Model | Max. Torque [N.m] | Max. Speed [rpm] | Weight [kg] | Overall Length [mm] | Square Drive [mm] | Min Pitch [mm] | Applicable Controller |
|---|---|---|---|---|---|---|---|
| NFT-201RM1-A55 | 31 | 321 | 4.2 | 433.5 | 12.7 | 37 | MFC-S024 |
| NFT-401RM1-A55 | 56 | 160 | 4.2 | 433.5 | 12.7 | 37 | MFC-S024 |
| NFT-801RM3-A130 | 124 | 321 | 8.5 | 551.5 | 15.8 | 46 | MFC-S060 |
| NFT-132RM3-A250U | 202 | 250 | 11.3 | 580 | 15.8 | 57 | MFC-S060 |
| NFT-202RM3-A250U | 255 | 140 | 11.8 | 601 | 15.8 | 57 | MFC-S060 |
| NFT-202RM3-A380 | 310 | 142 | 16.9 | 640 | 19 | 75 | MFC-S060 |
| NFT-302RM3-A550 | 466 | 96 | 22.2 | 658 | 25.4 | 75 | MFC-S060 |
U Type
| Model | Max. Torque [N.m] | Max. Speed [rpm] | Weight [kg] | Overall Length [mm] | Square Drive [mm] | Min Pitch [mm] | Applicable Controller |
|---|---|---|---|---|---|---|---|
| NFT-101RM1-S1U | 10 | 500 | 2.5 | 141 (150) | 9.5 | 41 | MFC-S024 |
| NFT-201RM1-SU | 20 | 500 | 2.5 | 141 (150) | 9.5 | 41 | MFC-S024 |
| NFT-401RM1-SU | 40 | 250 | 2.5 | 141 (150) | 9.5 | 41 | MFC-S024 |
| NFT-132RM3-SU | 130 | 395 | 6.5 | 209 (221) | 15.8 | 61 | MFC-S060 |
| NFT-202RM3-SU | 200 | 220 | 7 | 230 (221) | 15.8 | 63 | MFC-S060 |
| NFT-302RM3-SU | 300 | 150 | 10 | 257 (221) | 19 | 77 | MFC-S060 |
